How does a Fire Damper Work?

How Does a Fire Damper Work?

Fire dampers are an important part of a building’s fire protection, but unless you work with them every day, how they actually work probably isn’t something you give much thought to.

The basic idea is pretty simple.

A fire damper sits within a ventilation system where ductwork passes through a fire-resisting wall or floor. Most of the time it stays open and allows air to move through the building as normal.

If there’s a fire, the damper is designed to close and help stop the ventilation system becoming a route for fire and smoke to travel from one part of the building to another.

Simple enough. But there’s a little more to it than just a set of blades that close.

Why do we need fire dampers?

Buildings are divided into fire compartments to help slow down the spread of fire and smoke. The difficulty with ventilation is that we need ductwork to travel around the building, and that often means passing straight through those compartment walls and floors.



Every time we do that, we’re creating an opening in something that is there to resist the spread of fire.

And unlike something like a cable passing through a wall, ventilation ductwork creates an open route through which air normally travels. If that route isn’t properly protected, it can also provide a path for fire, heat and smoke.

That’s where the fire damper comes in.

During normal operation the damper stays open and lets the ventilation system do its job.

When there’s a fire and the damper is activated, it moves to its fire position and closes the opening.

Do all fire dampers work in the same way?



No, and this is where things can get a little more interesting.

There are lots of different fire damper designs. Curtain dampers, single-blade dampers, multi-blade dampers and butterfly dampers are just a few of the types you might come across. We’ll look at those properly in a separate article.

For now, the easiest way to understand how fire dampers work is to think about two common methods of operation: mechanical and motorised.

A traditional mechanical fire damper will often use a fusible link to hold the damper in its normal open position.

A motorised damper uses an electrical actuator to operate the damper and may also be connected to the building’s fire alarm, smoke detection or other control systems.

That difference matters when we inspect them.

You can’t walk into a building with hundreds of dampers and assume they’re all the same or should all be tested in exactly the same way.

The first thing is understanding what has actually been installed and how it is supposed to work.

What is a fusible link and how does it work?

A fusible link is a small component doing a pretty important job.

On a traditional mechanical fire damper, the link forms part of the mechanism that keeps the damper open.

Inside the link is a heat-sensitive element designed to release when it reaches a particular temperature.

A commonly encountered activation temperature is around 72°C, although other temperature-rated links are available depending on the damper and its application.



How the damper physically closes depends on its design. Some rely on gravity, some use a spring mechanism and others use a different mechanical arrangement.

But the principle is much the same. The fusible link releases and the damper is then able to move from its normal position into its fire position.

And because there are different fusible links available, you shouldn’t assume that any link that physically fits is the right one.

When we inspect a damper, we’re interested in more than simply seeing that a fusible link is there.

Is it in good condition?

Is it the right type?

Is it connected correctly?

Is the mechanism actually going to work as intended?



Those details matter.

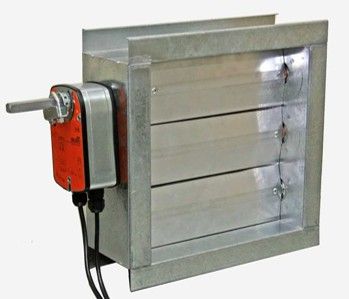

What about motorised fire and smoke dampers?

Motorised dampers work a little differently.

Rather than relying on a fusible link to release the damper, they use an electrical actuator to control the position of the blades.

A common arrangement is a spring-return actuator.

During normal operation, electrical power drives and holds the damper in its normal open position.



If the appropriate fire or smoke signal is received, power to the actuator is interrupted and an internal spring moves the damper into its closed, fire-safe position.

Depending on the system, the actuator may also have position switches that tell the control system whether the damper has actually reached its open or closed position.

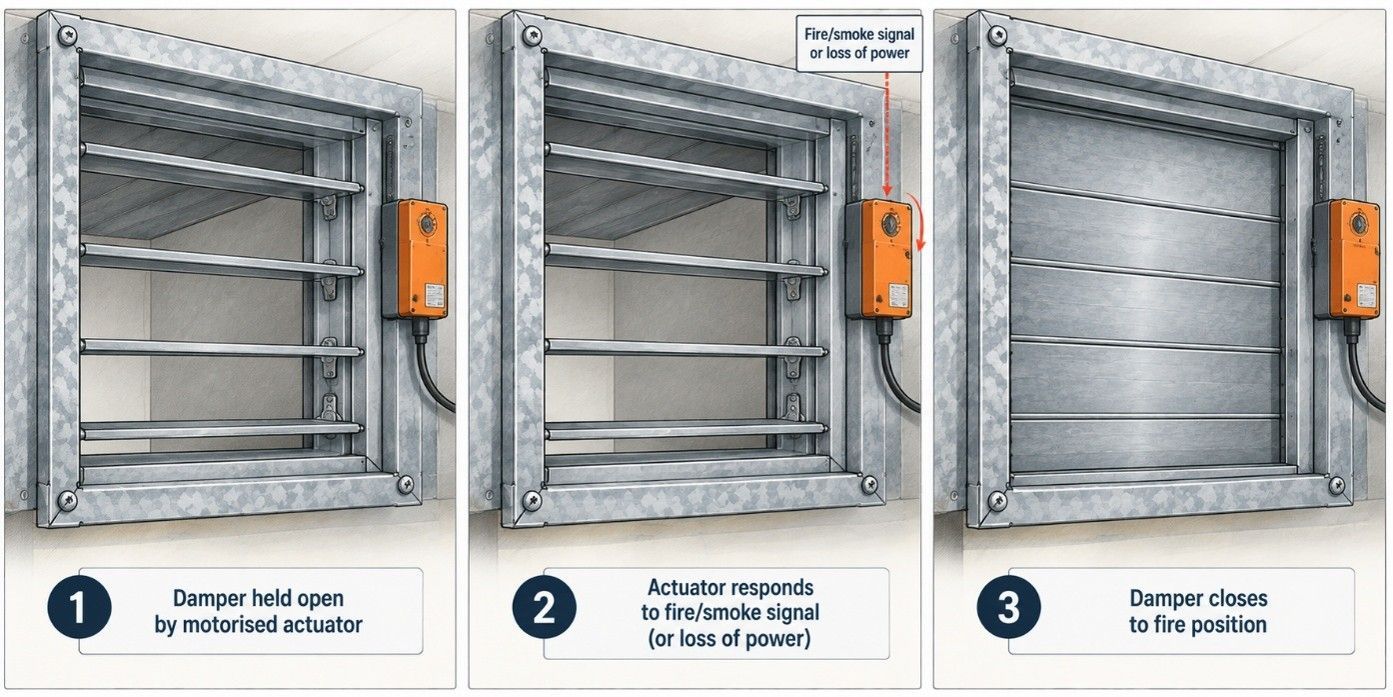

So the sequence might look something like:

Damper open → fire/smoke signal → actuator responds → damper closes.

The exact arrangement will depend on the damper and the way the building’s systems have been designed.

And that's why testing a motorised damper can involve more than simply watching the blades move.

We may also need to understand

what should activate it,

whether the actuator responds correctly,

whether the damper reaches the required position and whether that position is being correctly reported back to the system.

If the damper closes, does that mean everything is OK?

This is where things get particularly important.

Seeing a fire damper close tells us something useful: the damper operated.

What it doesn't necessarily tell us is that the whole installation is correct.

A damper could operate perfectly well while there are still issues with the way it has been installed, its condition, its accessibility or the surrounding fire-resisting construction.

That's why we don't think a fire damper inspection should simply be a case of:

Drop it. Reset it. Pass it. Move on.



A functional test is important, but it's only part of the picture.

We've covered this in much more detail in our article Does a Fire Damper Passing a Drop Test Mean It Is Compliant?

Why do fire dampers need to be inspected and tested?

Most fire dampers spend nearly all of their lives sitting open.

Hopefully, they'll never actually be needed during a fire.

But if that day does come, we need confidence that they're going to do what they were installed to do.

That's why regular inspection, testing and maintenance are so important.



And again, we think there's an important distinction between proving that something moved on the day of the test and understanding whether the damper and its installation are actually in a condition to perform as intended

The important bit

Whatever type of fire or fire/smoke damper you have, it's there for a reason.

It forms part of the building's approach to controlling the spread of fire and smoke.

That means getting the right damper, in the right place, installed in the right way matters.

But it doesn't stop when the installation is finished.

Dampers also need to be properly inspected, tested and maintained throughout their life by competent professionals so that when they're needed, there's confidence they'll actually perform as intended.



And that's why, for us, a good fire damper inspection should always look at more than whether the damper simply opens and closes.
