Private swimming pool ventilation system

Project Overview

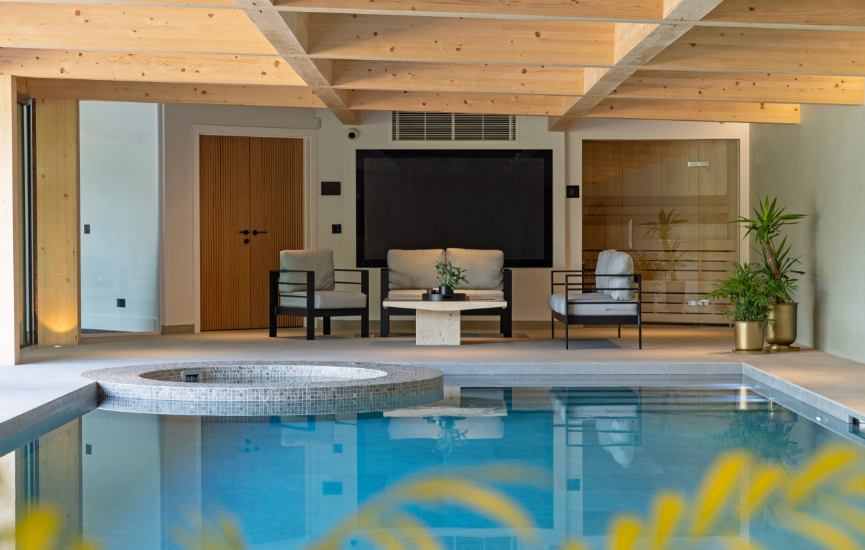

Nitor Ventilation Ltd was appointed by Buckingham Pools to design and deliver a bespoke mechanical ventilation solution for a high-end private swimming pool at Arden Glade, Warwick.

The project required a carefully engineered system to manage humidity, condensation risk, and air quality within a demanding pool hall environment, while integrating seamlessly with the building design and glazing layout.


This project featured on Channel 4`s Extraordinary Extensions


The ULTIMATE Retirement Plan | Extraordinary Extensions | Channel 4 Lifestyle - YouTube


Client Requirements and Challenges


The key challenges for this project included:


  • Effective humidity control to minimise condensation on extensive perimeter glazing
  • Even air distribution around the pool hall area
  • Coordination with a below-ground dry services void around the pool perimeter
  • Integration with a client-selected air handling unit (AHU)
  • Separation of fresh air intake and exhaust air to prevent recirculation
  • Compliance with pool-hall-specific material and corrosion requirements


Additional consideration was required due to temperature differences between the pool and gym spaces, increasing the risk of localised condensation.


Nitor’s Solution


Nitor provided a full ventilation design and installation package, working closely with the client and AHU manufacturer to ensure correct performance and coordination.


System Design


  • Air Handling Unit: Heatstar XF EC 3000 Super Plus
  • Total Air Volume: 3,000 m³/hr
  • Fresh / Exhaust Air: 2,000 m³/hr


The system was designed to deliver low-level supply air via a perimeter ductwork system serving all external glazing, helping to control surface temperatures and reduce condensation risk.

Scope of Works


Pre-Construction and Design


  • Initial ventilation system design based on architectural drawings
  • Review of AHU performance against pool hall layout and glazing
  • Coordination with AHU supplier to confirm system capability
  • Development of working drawings and builders' work requirements


Installation and Construction


  • Site survey and detailed coordination
  • Supply and installation of DW144 compliant ductwork
  • Below-ground insulated supply ductwork within dry perimeter void
  • Return air ductwork routed through the plant room into the pool hall
  • Fresh air and exhaust ductwork via external louvres
  • Installation of plenum boxes and 2-slot Menerga grilles
  • Full ductwork insulation using 25mm foil-faced fibreglass
  • Internal protective coatings suitable for chlorinated environments


Commissioning and Handover


  • System testing and commissioning (optional)
  • Issue of test certificates
  • Operation & Maintenance manuals and record drawings


Key Technical Features


  • Low-velocity return air design to minimise noise (NR25–30)
  • Corrosion-resistant materials and coatings throughout
  • Insulated ductwork to prevent condensation and heat loss
  • Careful coordination with floor finishes and glazing lines
  • Allowance for future maintenance access and commissioning


Outcome


The proposed system provides effective humidity control, reliable air distribution, and a robust long-term solution tailored specifically for a swimming pool environment. The design balances performance, durability, and aesthetic integration, supporting both occupant comfort and building protection.
